Principle of Cutter Suction Dredger

2024-03-01

A Cutter Suction Dredger (CSD) is a specialized type of dredging equipment used for excavation in rivers, lakes, and coastal areas. It is commonly employed for projects like channel dredging, land reclamation, and maintenance of waterways. The primary principle behind a Cutter Suction Dredger involves the use of a cutter head and suction system to remove and transport sediments. Here's an overview of the key principles of a Cutter Suction Dredger:

1. Cutter Head:

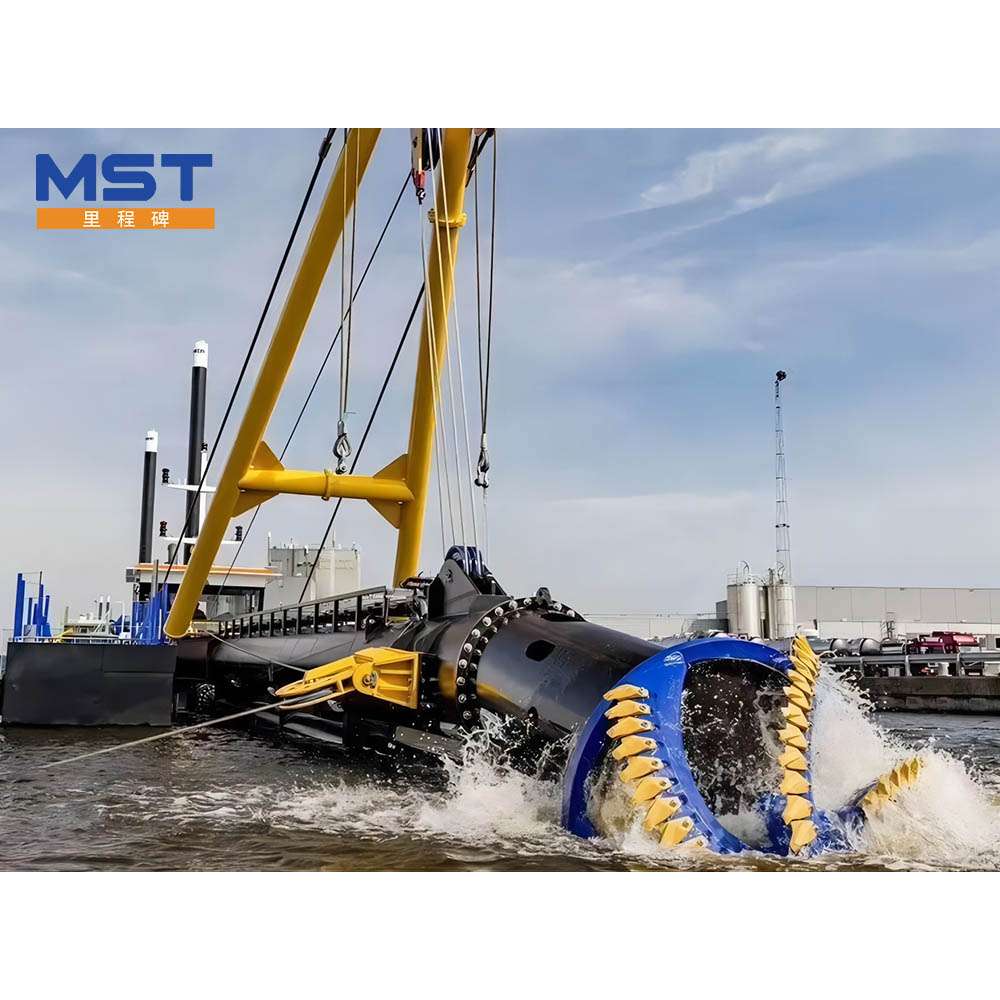

  - The Cutter Suction Dredger is equipped with a cutter head at the suction inlet. The cutter head is a rotating device with cutting blades that can break up and loosen compacted or hard soil and rock on the seabed or riverbed.

2. Suction Pipe:

  - Connected to the cutter head is a suction pipe or dredge pipe. This pipe extends from the cutter head to the dredger's hull and contains the mechanism for transporting the dredged material.

3. Suction Pump:

  - The dredged material is sucked into the suction pipe by a powerful suction pump. This pump creates a vacuum, drawing in water and sediments from the dredging area.

4. Transportation of Dredged Material:

  - As the material is sucked into the suction pipe, it is mixed with water, forming a slurry. The slurry is then pumped through the discharge pipeline and transported to the designated disposal area.

5. Discharge System:

  - The dredger is equipped with a discharge system that may include a floating pipeline or a floating hose. The dredged material is pumped through this system to the designated location, such as a sediment containment area or a reclamation site.

6. Positioning System:

  - To maintain precise positioning during dredging operations, Cutter Suction Dredgers often use anchors or spuds. These are lowered to the seabed or riverbed to secure the dredger in place.

7. Swinging Movement:

  - Cutter Suction Dredgers can be equipped with a swinging or spudding movement system. This allows the dredger to move laterally, covering a larger dredging area without repositioning the entire vessel.

8. Spuds:

  - Spuds are vertical poles or pillars that can be lowered to the seabed to anchor the dredger in position. They help stabilize the dredger during operations.

9. Power Source:

  - Cutter Suction Dredgers are typically powered by diesel engines. The power generated is used to drive the cutter head, suction pump, and other essential components.

10. Control and Navigation:

   - Modern Cutter Suction Dredgers are equipped with advanced control and navigation systems. These systems aid in precise positioning, efficient dredging operations, and safe navigation in water bodies.

Cutter Suction Dredgers are versatile and effective in various dredging applications, offering a practical solution for maintaining navigational channels, creating or maintaining ports, and conducting land reclamation projects. The combination of a powerful cutter head and suction system allows these dredgers to handle a wide range of soil conditions.
