Vacuum Circuit Breaker: Reliable Switching for Medium Voltage Systems

A vacuum circuit breaker (VCB) is an electrical switching device designed to protect electrical circuits by interrupting fault currents in medium-voltage power systems. It extinguishes arcs in a vacuum, offering fast, safe, and efficient switching performance.

What is a Vacuum Circuit Breaker?

A vacuum circuit breaker interrupts the flow of electrical current by separating contacts inside a vacuum-filled chamber. The vacuum environment rapidly extinguishes the arc formed when the contacts open, preventing damage to the electrical system and ensuring safety.

How Does a Vacuum Circuit Breaker Work?

When a fault occurs, the VCB opens its contacts.

The electrical arc that forms between the contacts is contained within a vacuum interrupter.

The vacuum extinguishes the arc quickly due to the absence of gas particles to sustain it.

The current flow is interrupted safely and efficiently.

Applications of Vacuum Circuit Breakers

Medium voltage power distribution (typically 1kV to 38kV).

Industrial plants and factories.

Power generation stations.

Substations and switchgear assemblies.

Renewable energy systems.

Advantages of Vacuum Circuit Breakers

Long Service Life: Durable vacuum interrupters require less replacement.

Low Maintenance: Fewer components subject to wear.

High Safety: Fast interruption reduces risk of damage and fire.

Environmentally Safe: Avoids use of greenhouse gases.

Cost-Effective: Low operational and maintenance costs.

Types of Vacuum Circuit Breakers

Indoor VCBs: Installed inside switchgear cubicles for controlled environments.

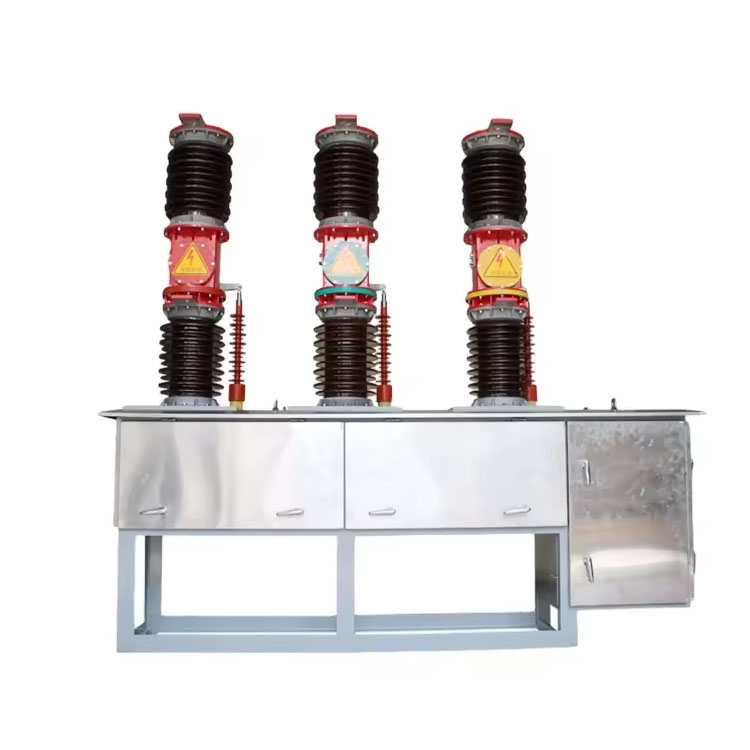

Outdoor VCBs: Designed for harsh environments with protective enclosures.

Spring Mechanism Operated: Use springs for opening and closing operations.

Pneumatic or Hydraulic Operated: Use fluid power for actuation.

Maintenance Tips

Regular inspection of contacts and vacuum interrupters.

Periodic mechanical and electrical testing.

Keep breaker housing clean and dry.

Replace worn or damaged parts promptly.

Conclusion

A vacuum circuit breaker is a reliable, efficient, and environmentally friendly solution for medium-voltage power protection. Its fast arc extinction, compact design, and low maintenance make it ideal for modern electrical distribution systems.
