What Are Copper Braided Wires and Why Are They Essential in Electrical Applications?

Copper braided wires are a key component in many electrical and industrial applications, playing a crucial role in ensuring efficient conductivity, flexibility, and durability. But what exactly are copper braided wires, and why are they so essential for various electrical systems? In this blog, we’ll explore the structure, uses, and advantages of copper braided wires, shedding light on why they are often the preferred choice for many industries.

What are Copper Braided Wires?

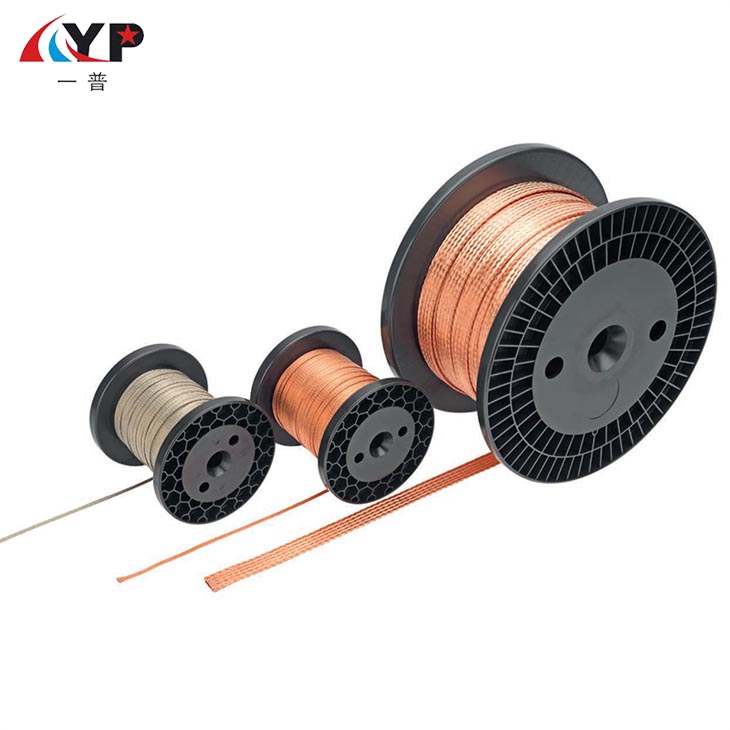

Copper braided wires are a type of electrical wire made from multiple strands of copper that are braided together in a specific pattern. This design gives the wire increased flexibility and durability compared to a solid copper wire. The copper strands are woven tightly to form a braid, which enhances the wire’s ability to handle high currents and resist wear and tear.

The process of braiding copper wire involves intertwining many thin strands of copper wire, which increases the wire's surface area. This not only improves its electrical conductivity but also enhances its flexibility, allowing it to bend and flex without breaking. The braiding technique can vary, but typically, the wire will be encased in an insulating material for protection and safety.

Why Are Copper Braided Wires Important?

Copper braided wires are used in a variety of applications because of their superior performance characteristics. Here are some reasons why they are often the go-to choice in electrical systems:

#1. Superior Electrical Conductivity

Copper is one of the best conductors of electricity, second only to silver in terms of conductivity. By braiding multiple strands of copper, these wires provide excellent electrical performance while minimizing the resistance to the flow of electricity. This makes copper braided wires ideal for applications that require reliable power transmission, such as in power cables, transformers, and electrical motors.

#2. Enhanced Flexibility

One of the main advantages of copper braided wires is their flexibility. Unlike solid wires, which are stiff and prone to breaking when bent, braided copper wires can bend and flex without losing their integrity. This flexibility makes them particularly useful in applications where the wire needs to be routed through tight spaces or subjected to frequent movement, such as in robotics, automotive, or industrial machinery.

#3. Durability and Longevity

The braiding of copper wires increases their resistance to mechanical stress, abrasions, and vibrations. This makes them more durable and long-lasting compared to single-strand wires, especially in high-stress environments. The braided structure provides better resistance to wear and tear, ensuring the wire performs efficiently over time even under harsh conditions.

#4. Resistance to Corrosion

Copper itself is highly resistant to corrosion, and when combined with braiding, it offers enhanced protection against environmental factors such as moisture, salt, and chemicals. This corrosion resistance is particularly important in industries like marine and offshore applications, where wires are exposed to harsh weather conditions and chemicals. Additionally, copper braided wires can be coated with additional protective layers to increase their resistance to corrosion and environmental degradation.

#5. Thermal Performance

Copper braided wires also perform well under high temperatures. Copper is an excellent heat conductor, and the braided structure ensures that heat is dissipated efficiently, preventing overheating. This makes braided copper wires ideal for use in applications that generate heat, such as in electrical panels, high-power machinery, and power cables.

Applications of Copper Braided Wires

Given their versatility and numerous advantages, copper braided wires are used in a wide range of industries and applications. Here are some common uses:

#1. Power Transmission

In power transmission systems, copper braided wires are often used in cables and conductors that carry electricity over long distances. Their superior conductivity and durability ensure that power is transmitted efficiently without significant losses. Braided copper wires are also used in grounding and bonding applications to ensure the safety and reliability of electrical systems.

#2. Automotive and Aerospace

Copper braided wires are commonly used in the automotive and aerospace industries due to their flexibility and ability to handle high currents. They are used in wiring harnesses, battery connections, and electrical components where space is limited and movement is constant. The ability of braided wires to resist mechanical stress and vibration makes them perfect for the rigorous demands of these industries.

#3. Electronics

In consumer electronics, such as computers, smartphones, and televisions, copper braided wires are used to connect internal components and ensure stable electrical connections. Their flexibility allows for easy integration into compact devices, while their conductivity ensures that power and signals are transmitted effectively.

#4. Industrial Applications

Copper braided wires are used extensively in industrial settings, especially in equipment where high power is needed or where flexibility and durability are important. These applications include transformers, electric motors, industrial robots, and high-frequency machinery.

#5. Marine and Offshore

The marine industry relies heavily on copper braided wires because of their resistance to corrosion, which is essential for underwater and offshore equipment exposed to saltwater. These wires are used in shipboard power systems, communication cables, and grounding applications to ensure the safe operation of equipment in challenging conditions.

#6. Grounding and Shielding

Copper braided wires are commonly used for grounding and shielding purposes. The braid provides a large surface area for grounding electrical systems and shielding sensitive electronics from electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that electrical equipment works without disruption and that the systems are protected from electrical surges or failures.

Advantages of Copper Braided Wires

- Flexibility: Braided copper wires are highly flexible and can be bent and twisted without breaking, making them ideal for dynamic and moving systems.

- High Conductivity: Copper is one of the best materials for electrical conductivity, ensuring efficient power transfer.

- Durability: The braided design offers resistance to wear and tear, making the wires long-lasting in harsh environments.

- Corrosion Resistance: Copper resists corrosion and can be treated for additional protection, making it ideal for use in challenging environments.

- High Thermal and Electrical Performance: Copper braided wires can handle high current loads and dissipate heat effectively, ensuring reliable performance under stress.

Conclusion

Copper braided wires are an essential component in a wide range of electrical applications, offering advantages such as superior conductivity, flexibility, durability, and corrosion resistance. Whether used in power transmission, electronics, automotive, aerospace, or industrial machinery, they ensure efficient, long-lasting, and reliable electrical connections. As technology continues to advance, the demand for copper braided wires will remain high, particularly in industries that require precision and high-performance standards. Their combination of versatility and durability makes them a top choice for both demanding industrial applications and everyday electrical systems.
