What Is a Mechanical Bar Screen and Why Is It Essential for Wastewater Treatment?

In wastewater treatment plants, ensuring the removal of large debris from water before it goes through the treatment process is critical for efficiency and effectiveness. One of the key components used for this purpose is a mechanical bar screen. But what exactly is a mechanical bar screen, and why is it essential for wastewater treatment? In this blog, we will explore the function, importance, and advantages of using mechanical bar screens in wastewater facilities.

What Is a Mechanical Bar Screen?

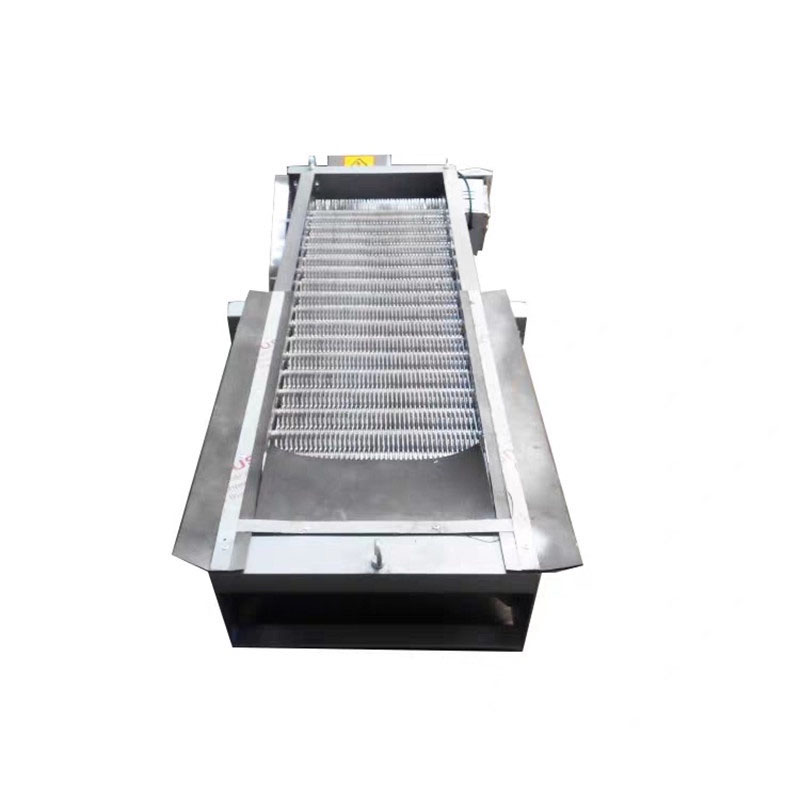

A mechanical bar screen is a type of filtration device used to remove large debris and solid waste from wastewater. It consists of a series of bars or metal rods arranged in parallel, typically at a slight angle, which allow water to flow through while trapping larger particles. These bars are spaced at varying intervals depending on the type of material that needs to be filtered out.

Mechanical bar screens are often found in the preliminary stages of wastewater treatment plants, where they serve as the first line of defense to prevent larger objects like plastics, leaves, and sticks from clogging or damaging more sensitive equipment downstream.

How Does a Mechanical Bar Screen Work?

The working mechanism of a mechanical bar screen is relatively simple but highly effective. When wastewater flows through the screen, larger objects are trapped by the bars, while the filtered water continues to flow through the gaps. These large particles, also known as "screenings," are collected on the surface of the bars.

In most systems, a mechanical or automated system moves the debris to a collection bin or hopper where it can be removed and disposed of safely. The movement of debris can be achieved through a rake, which scrapes the screenings from the bars and pushes them to a discharge area.

Mechanical bar screens can be designed to operate continuously or intermittently, depending on the flow and volume of wastewater being processed.

Why Are Mechanical Bar Screens Essential for Wastewater Treatment?

1. Prevention of Equipment Damage

  One of the main reasons mechanical bar screens are so important in wastewater treatment is that they protect more delicate and expensive equipment from damage. Without the initial filtration provided by a bar screen, large debris like sticks, rocks, and even large plastics could damage pumps, valves, and other machinery. The mechanical bar screen effectively filters out these contaminants before they cause issues downstream.

2. Improved Efficiency

  By removing large solids from the wastewater at the beginning of the treatment process, mechanical bar screens help optimize the performance of the entire system. Without clogging, pumps and other equipment downstream can operate at maximum efficiency, reducing the risk of failures and downtime.

3. Reduced Maintenance Costs

  Mechanical bar screens can significantly reduce maintenance costs by preventing the buildup of debris in pipelines and pumps. These systems are designed for easy operation and low maintenance, reducing the need for regular repair work and enhancing the longevity of the plant's infrastructure.

4. Protection of the Environment

  By effectively removing large objects from wastewater, mechanical bar screens help ensure that untreated water that might contain harmful debris does not enter natural bodies of water. This is essential for protecting the environment and maintaining the overall quality of water in rivers, lakes, and oceans.

5. Cost-Effective Solution

  While mechanical bar screens do require an initial investment, they save money in the long term by reducing the need for manual labor and minimizing the risk of costly repairs. Furthermore, because they help maintain optimal system performance, they ensure that the plant continues to run smoothly, thereby enhancing the overall cost-effectiveness of the operation.

What Are the Different Types of Mechanical Bar Screens?

There are several types of mechanical bar screens, each designed to meet specific operational needs. Some of the most common types include:

1. Manual Bar Screens

  Manual bar screens are operated by personnel who physically remove the collected debris from the bars. This type of screen is more labor-intensive and typically used for smaller operations or where there is limited flow of wastewater.

2. Automatic Bar Screens

  Automatic bar screens are equipped with mechanical or electrical systems that continuously remove debris from the bars. These systems require less human intervention and can operate autonomously. They are ideal for larger wastewater treatment plants with high flow rates.

3. Raked Bar Screens

  These screens feature a rake mechanism that scrapes debris from the bars and moves it to a discharge point. They are commonly used in larger facilities where continuous cleaning of the screen is necessary to maintain flow rates.

4. Rotary Bar Screens

  Rotary bar screens are equipped with rotating drums or bars that allow debris to be filtered out as the drum turns. These systems are particularly effective in handling large volumes of wastewater and are often used in municipal and industrial settings.

5. Inclined Bar Screens

  Inclined bar screens are designed at a slight angle, which helps debris fall off the bars as it moves through the screen. This type of screen is particularly useful in environments where a high level of debris is expected.

What Should You Consider When Choosing a Mechanical Bar Screen?

When selecting a mechanical bar screen for your wastewater treatment facility, there are several factors to consider:

1. Flow Capacity

  Choose a bar screen that matches the flow rate of the wastewater in your facility. A system that cannot handle the volume of water will quickly become ineffective and lead to blockages.

2. Debris Size and Type

  The type of debris you are filtering will influence the screen's design and the size of the gaps between the bars. Some screens are better suited to handling large, heavy debris, while others are more effective at filtering finer particles.

3. Maintenance Requirements

  Consider how often the system will need to be cleaned and maintained. Automated systems tend to require less manual labor, but they might come with higher upfront costs. Choose a system that fits both your operational and budgetary needs.

4. Material and Durability

  Mechanical bar screens are typically made from stainless steel or other durable materials that can withstand the harsh conditions of wastewater treatment. Ensure that the materials are corrosion-resistant and designed for long-term use in a wet environment.

5. Ease of Installation

  Installation time and complexity can vary depending on the system. Some bar screens are easier to retrofit into existing systems, while others may require significant changes to the plant's infrastructure. Be sure to factor in installation costs when choosing a system.

Conclusion: Why a Mechanical Bar Screen Is Key to Effective Wastewater Treatment

A mechanical bar screen is a vital component in any wastewater treatment facility. It acts as the first line of defense against large debris, preventing damage to downstream equipment, improving system efficiency, and protecting the environment. Whether you're operating a small plant or a large industrial facility, investing in a high-quality mechanical bar screen ensures that your system runs smoothly and cost-effectively.
