What Is an Automatic Power Factor Controller and Why Is It Important?

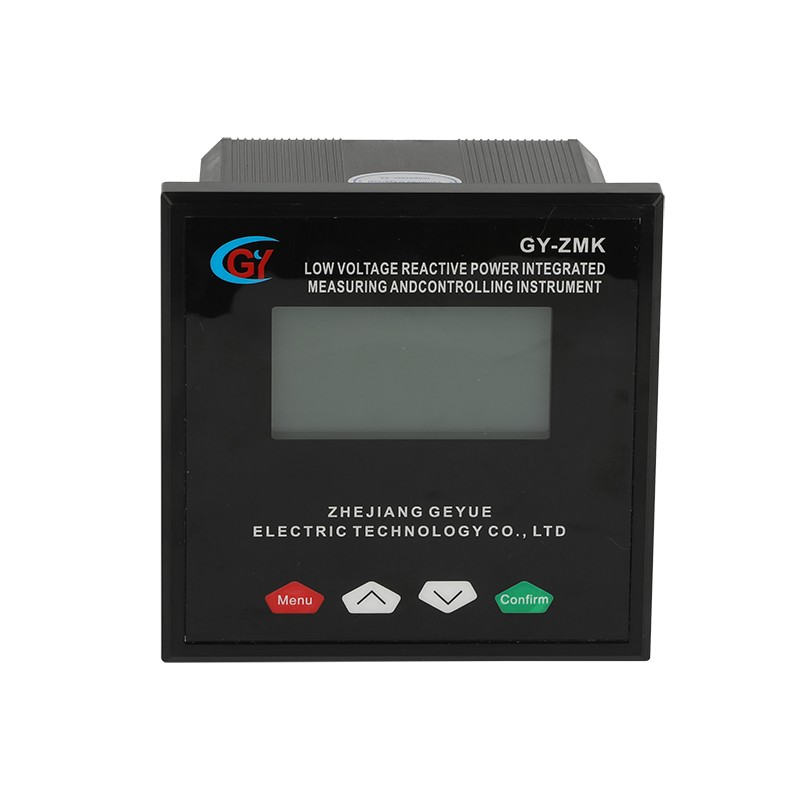

An Automatic Power Factor Controller (APFC) is an electrical device used to improve the power factor of an electrical system automatically. It monitors the power factor continuously and switches capacitor banks on or off to maintain the desired power factor level, optimizing energy efficiency and reducing electricity costs.

How Does an Automatic Power Factor Controller Work?

The APFC measures the real power (kW) and reactive power (kVAR) in the system. Based on these measurements, it calculates the power factor and controls capacitor banks to add or remove reactive power compensation as needed. This dynamic adjustment helps maintain the power factor close to unity (1.0), minimizing losses and penalties from utility companies.

Key Features of APFC

Real-time Monitoring: Continuously tracks power factor and load conditions.

Automatic Capacitor Switching: Engages or disengages capacitor banks without manual intervention.

Digital Display and Controls: Provides user-friendly interface for settings and diagnostics.

Overload and Fault Protection: Safeguards the system from electrical faults.

Programmable Settings: Allows customization according to specific load requirements.

Compact and Durable Design: Suitable for industrial and commercial environments.

Benefits of Using an Automatic Power Factor Controller

Improved Energy Efficiency: Reduces reactive power consumption and electrical losses.

Lower Electricity Bills: Avoids power factor penalties imposed by utilities.

Enhanced Equipment Life: Reduces stress on transformers, cables, and generators.

Better Voltage Stability: Maintains stable voltage levels across the system.

Reduced Carbon Footprint: Optimizes energy use, contributing to sustainability goals.

Applications

Industrial manufacturing plants

Commercial buildings and offices

Power distribution networks

Renewable energy systems

Data centers and IT facilities

Conclusion

An Automatic Power Factor Controller (APFC) is a vital device for maintaining optimal power factor, improving electrical efficiency, and reducing costs in modern electrical systems. By automating reactive power compensation, APFCs ensure reliable, efficient, and cost-effective operation.
