What Makes Ball Valves Essential for Fluid Control Systems?

When it comes to controlling the flow of liquids or gases in a wide range of industries, ball valves are one of the most reliable and versatile options. But what exactly makes ball valves so essential for fluid control systems, and why are they commonly used in applications ranging from water treatment to oil and gas pipelines? In this blog, we'll explore what ball valves are, how they work, and why they are considered a critical component in many fluid-handling systems.

What is a Ball Valve?

A ball valve is a type of quarter-turn valve that uses a spherical ball with a hole through the middle to control the flow of fluids. The ball sits inside the valve body, and when the valve is turned (typically 90 degrees), the ball rotates to either allow or block the flow of the medium passing through. When the hole in the ball is aligned with the pipe, fluid flows freely; when the ball is rotated so that the hole is perpendicular to the flow path, the valve is closed, stopping the fluid from passing through.

Ball valves are often favored for their simple design, reliability, and ease of operation. They can be manually operated or automated with the use of electric or pneumatic actuators for remote control.

Why are Ball Valves Important in Fluid Control?

Ball valves are essential in a wide range of fluid control systems due to their unique combination of advantages. Here are some reasons why they are widely used:

#1. Reliable and Durable Performance

One of the key reasons ball valves are essential is their reliability. These valves are designed to last and are able to handle both high pressure and high temperature with ease. Their robust construction means they can withstand demanding conditions, making them ideal for critical systems in industries like oil and gas, chemicals, and water treatment.

Because of their simple yet effective design, ball valves have a long lifespan with minimal maintenance, making them a cost-effective choice for fluid control systems.

#2. Quarter-Turn Operation

Ball valves are operated by a simple quarter-turn mechanism. This means that turning the valve 90 degrees either opens or closes the flow path. This makes ball valves incredibly easy to operate, especially when compared to other valve types that require more intricate adjustments. The simplicity of the quarter-turn design also means that ball valves can be used for both manual and automated control.

For many industrial applications, ease of operation is a key factor. Ball valves can be quickly opened or closed, which is especially important in emergency situations where fast fluid control is required.

#3. Versatility in Applications

Ball valves are extremely versatile and can be used in a variety of applications, including:

- Water and wastewater treatment: Ball valves are commonly used in water distribution systems, ensuring that flow is easily regulated, and leaks are minimized.

- Oil and gas: In the oil and gas industry, ball valves are used to control the flow of crude oil, natural gas, and other fluids in pipelines, refineries, and drilling equipment.

- Chemical processing: Chemical plants rely on ball valves to handle aggressive fluids, ensuring that substances are safely and efficiently managed throughout the production process.

- HVAC systems: Ball valves are used in heating, ventilation, and air conditioning systems for controlling the flow of refrigerants and other fluids.

The ability to use ball valves in such a wide range of industries speaks to their adaptability and essential role in fluid control.

#4. Minimal Leakage

Because of their tight seal and straightforward design, ball valves are known for their ability to create a nearly leak-free seal. When the valve is fully closed, the ball is in direct contact with the valve seat, preventing fluid from leaking through. This makes them ideal for applications where even small leaks can lead to significant problems, such as in the oil and gas sector or chemical processing plants.

This reliability in sealing is one of the key factors that sets ball valves apart from other valve types, particularly in high-pressure systems.

#5. Ability to Handle High Flow Rates

Ball valves are excellent for applications that require the passage of large amounts of fluid or gas. Unlike other valve types, which may cause significant flow restrictions when fully open, ball valves maintain a smooth flow path due to the large opening through the ball. This allows for high flow rates and minimal pressure drop across the valve, which is essential in systems that need to transport fluids quickly and efficiently.

This high-flow capacity makes ball valves particularly useful in industries like water treatment, where large volumes of liquid need to be moved quickly and safely.

#6. Low Maintenance Requirements

Ball valves are designed to be simple, durable, and easy to maintain. Their straightforward design means fewer moving parts compared to other valve types, which reduces the likelihood of wear and failure. Additionally, they have a long operational life, meaning they often require less frequent maintenance and repairs.

This low-maintenance nature makes ball valves a popular choice for applications in remote or hard-to-access locations where downtime or repair costs can be significant.

Types of Ball Valves

There are several variations of ball valves, each designed to suit different types of applications and environments. Some of the most common types include:

- Standard Ball Valve: The most common type, used for general-purpose applications where quick on/off flow control is needed.

- Floating Ball Valve: In this design, the ball is not fixed to the valve stem but is instead allowed to "float" within the valve body. The ball is pressed against the valve seat by the pressure of the flow, providing a tighter seal.

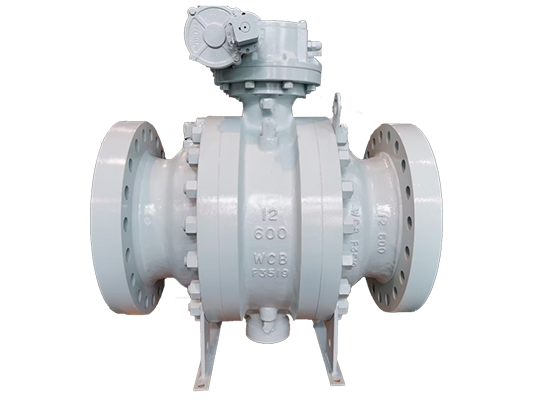

- Trunnion Ball Valve: This type features a ball that is fixed at both ends, allowing it to be more stable and resistant to high pressures and larger flow rates.

- V-Port Ball Valve: With a "V" shaped notch in the ball, this valve allows for more precise control of flow, making it ideal for throttling applications.

- Double Block and Bleed (DBB) Ball Valve: Used in applications requiring a double block to prevent leaks and ensure safety, often used in critical systems like pipeline flow control.

Each type of ball valve is designed to meet specific operational needs, such as higher flow control, higher pressure handling, or precise flow regulation.

Advantages of Ball Valves

- Simple Operation: Quarter-turn mechanism makes them easy to operate, whether manually or remotely.

- Durable and Reliable: Ball valves are built to last, even under high pressure and temperature conditions.

- Leak-Proof: The tight seal minimizes the risk of leaks, making them ideal for critical applications.

- High Flow Capacity: Ball valves offer minimal flow resistance, allowing for high flow rates and efficiency.

- Low Maintenance: Fewer moving parts and a simple design reduce the need for frequent maintenance.

Conclusion

Ball valves play a vital role in many fluid control systems, offering exceptional performance, durability, and reliability. Their ability to handle high pressures, high flow rates, and a wide range of fluids, combined with their ease of operation, makes them a critical component in industries like water treatment, oil and gas, chemical processing, and HVAC systems. Whether you're managing complex pipelines, controlling industrial machinery, or regulating the flow of water, ball valves provide the precision and dependability needed to ensure smooth and efficient operations.
